LSQ-TG Close Type Hydraulic Quick Coupling with Ball-Locking Mechanism and Precision Machined Steel Construction for -20°C to +120°C Temperature Range

Rincian produk

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1

Harga: 5

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Ball-Locking Mechanism Hydraulic Quick Coupling, Precision Machined Quick Disconnect Hydraulic Coupler, Temperature Range -20°C to +120°C Hydraulic Quick Connect Coupling


Model No.:	LSQ-TG (ISO A Steel)	Tekanan kerja:	3000 psi
Ukuran tubuh:	3/4, 1	Aliran Dinilai:	28 GPM, 50 GPM
Kisaran suhu:	-20ºC hingga +120ºC	Bahan segel:	NBR
Standar ISO:	ISO 7241-1 Series a	Katup Poppet:	Ya
Mekanisme penguncian bola:	Ya	Bahan:	Baja
Bahan soket:	Stok bar padat	Ukuran hex 1:	S38, S44.5
Ukuran hex 2:	S35, S41	Jenis Thread:	G3/4 NPT3/4, G1 "NPT1"
Kapasitas produksi:	100000 set/bulan

Model No.:	LSQ-TG (ISO A Steel)
Tekanan kerja:	3000 psi
Ukuran tubuh:	3/4, 1
Aliran Dinilai:	28 GPM, 50 GPM
Kisaran suhu:	-20ºC hingga +120ºC
Bahan segel:	NBR
Standar ISO:	ISO 7241-1 Series a
Katup Poppet:	Ya
Mekanisme penguncian bola:	Ya
Bahan:	Baja
Bahan soket:	Stok bar padat
Ukuran hex 1:	S38, S44.5
Ukuran hex 2:	S35, S41
Jenis Thread:	G3/4 NPT3/4, G1 "NPT1"
Kapasitas produksi:	100000 set/bulan

LSQ-TG Close Type Hydraulic Quick Coupling with Ball-Locking Mechanism and Precision Machined Steel Construction for -20°C to +120°C Temperature Range

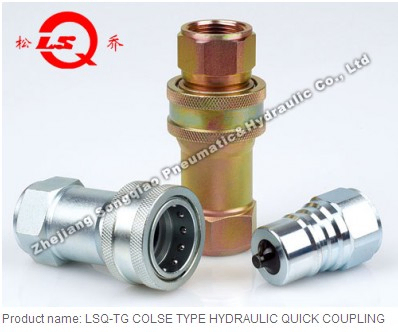

LSQ-TG Close Type Hydraulic Quick Coupling (Steel)

Product Description

The LSQ-TG Series close type hydraulic quick coupling (steel) features a proven design for demanding hydraulic applications across multiple industries.

Applications

Suitable for construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other industrial hydraulic systems.

Technical Specifications

Body Size (in)	3/4	1
Rated Pressure (PSI)	3000	3000
Rated Flow (GPM)	28	50
Temperature Range (std seals)	-20°C to +120°C
Standard seal material	NBR (Nitrile)

Key Features

Poppet valves prevent uncoupled leakage
Automatic valve opening when coupled within rated pressure
Hardened critical parts for enhanced durability
Reliable ball-locking mechanism for secure connection
Precision-machined socket and plug from solid bar stock
Conforms to ISO 7241-A standard
Compatible with PARKER 6600, FASTER ANV, AEROQUIP 5600, and HANSEN HA 15000 series

Technical Dimensions - Socket

ISO	PARTNO.	LS	¢D	HEX1	A	T
20	LSQ-TG-06SF	85	49	S38	19	G3/4 NPT3/4
25	LSQ-TG-08SF	98.5	57	S44.5	23	G1" NPT1"

Technical Dimensions - Plug

ISO	PARTNO.	LP	d	C	HEX2	A	T
20	LSQ-TG-06PF	57	29	29	S35	19	G3/4 NPT3/4
25	LSQ-TG-08PF	65	34.3	34.3	S41	23	G1" NPT1"

Complete Assembly Dimensions

ISO	PARTNO.	LP	D	HEX1	HEX2	T
20	LSQ-TG-06	115	49	S38	S35	G3/4 NPT3/4
25	LSQ-TG-08	130.5	57	S44.5	S41	G1" NPT1"
