SS316 Stainless Steel Hydraulic Quick Coupling with Temperature Range -20ºC to +180ºC Precision Machined for Hardened Durability

Rincian produk

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1

Harga: 10

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SS316 Stainless Steel Hydraulic Quick Coupling, Precision Machined Hydraulic Quick Coupling, Hardened Durability Quick Release Coupling


Model No.:	LSQ-S1-SS	Ukuran:	Dari 1/4 'hingga 2'
Tekanan kerja:	Dari 2000 psi hingga 5000 psi	Ukuran tubuh:	1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2
Tekanan Dinilai:	2000, 2000, 1500, 1500, 1000, 1000, 1000, 1000 psi	Aliran Dinilai:	3, 6, 12, 28, 50, 88, 220, 240 gpm
Kisaran suhu:	-20ºC hingga +180ºC	Bahan segel standar:	Viton
Iso:	6.3, 10, 12.5, 20, 25, 31.5, 40, 50	Jenis Thread:	G1/4 NPT1/4, G3/8 NPT3/8, G1/2 NPT1/2, G3/4 NPT3/4, G1 NPT1, G1-1/4 NPT1-1/4, G1-1/2 NPT1-1/2, G2 NP
Kapasitas produksi:	10.000 set/bulan	Bahan:	SS316
Katup Poppet:	Tersedia	Mekanisme penguncian bola:	Dapat diandalkan
Mesin Presisi:	Ya

Model No.:	LSQ-S1-SS
Ukuran:	Dari 1/4 'hingga 2'
Tekanan kerja:	Dari 2000 psi hingga 5000 psi
Ukuran tubuh:	1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2
Tekanan Dinilai:	2000, 2000, 1500, 1500, 1000, 1000, 1000, 1000 psi
Aliran Dinilai:	3, 6, 12, 28, 50, 88, 220, 240 gpm
Kisaran suhu:	-20ºC hingga +180ºC
Bahan segel standar:	Viton
Iso:	6.3, 10, 12.5, 20, 25, 31.5, 40, 50
Jenis Thread:	G1/4 NPT1/4, G3/8 NPT3/8, G1/2 NPT1/2, G3/4 NPT3/4, G1 NPT1, G1-1/4 NPT1-1/4, G1-1/2 NPT1-1/2, G2 NP
Kapasitas produksi:	10.000 set/bulan
Bahan:	SS316
Katup Poppet:	Tersedia
Mekanisme penguncian bola:	Dapat diandalkan
Mesin Presisi:	Ya

SS316 Stainless Steel Hydraulic Quick Coupling with Temperature Range -20ºC to +180ºC Precision Machined for Hardened Durability

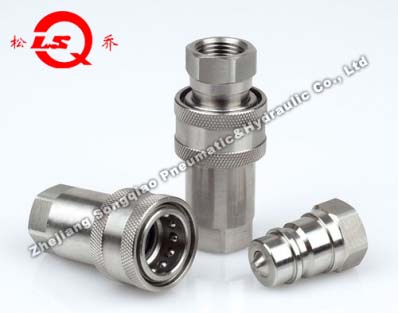

LSQ-S1-SS Close Type Hydraulic Quick Coupling (SS316)

Product Description

LSQ-S1-SS CLOSE TYPE HYDRAULIC QUICK COUPLING (STEEL)

Applications

The LSQ-S1-SS Series offers a proven design for demanding hydraulic applications including construction equipment, forestry equipment, agricultural machinery, oil tools, oil equipment, and steel mill machinery.

Body Size (in)	1/4	3/8	1/2	3/4	1	1-1/4	1-1/2	2
Rated Pressure (PSI)	2000	2000	1500	1500	1000	1000	1000	1000
Rated Flow (GPM)	3	6	12	28	50	88	220	240

Temperature Range (std seals): -20ºC to +180ºC

Standard seal material: VITON

LSQ-S1-SS Series Features

Poppet valves prevent uncoupled leakage
Poppet valves open automatically when coupled within rated working pressure for efficient flow
Critical parts are hardened for durability
Dependable ball-locking mechanism securely holds mating halves together
Socket and plug precision machined from solid bar stock
Conforms to ISO7241-A standard
Compatible with PARKER 6600 Series, FASTER ANV Series, AEROQUIP 5600 Series and HANSEN HA 15000 Series

Technical Specifications - Socket

ISO	PARTNO.	LS	¢D	HEX1	A	T
6.3	LSQ-S1-SS-02SF	50	26	19	13	G1/4 NPT1/4
10	LSQ-S1-SS-03SF	56	31.5	22	14	G3/8 NPT3/8
12.5	LSQ-S1-SS-04SF	66	38.5	27	16	G1/2 NPT1/2
20	LSQ-S1-SS-06SF	80	48	34	18	G3/4 NPT3/4
25	LSQ-S1-SS-08SF	94	56	41	21	G1 NPT1
31.5	LSQ-S1-SS-10SF	117	69.5	50	25	G1-1/4 NPT1-1/4
40	LSQ-S1-SS-12SF	133	84	60	27	G1-1/2 NPT1-1/2
50	LSQ-S1-SS-16SF	165	99	75	26	G2 NPT2

Technical Specifications - Plug

ISO	PARTNO.	LP	d	C	HEX2	A	T
6.3	LSQ-S1-SS-02PF	35.5	11.8	15	19	13	G1/4 NPT1/4
10	LSQ-S1-SS-03PF	36.5	17.3	21.4	22	14	G3/8 NPT3/8
12.5	LSQ-S1-SS-04PF	43.5	20.5	27	27	16	G1/2 NPT1/2
20	LSQ-S1-SS-06PF	57	29	28	35	18	G3/4 NPT3/4
25	LSQ-S1-SS-08PF	59.5	34.3	36	41	21	G1 NPT1
31.5	LSQ-S1-SS-10PF	75	45	46	50	25	G1-1/4 NPT1-1/4
40	LSQ-S1-SS-12PF	83.5	55	52	60	27	G1-1/2 NPT1-1/2
50	LSQ-S1-SS-16PF	105	65	64	75	26	G2 NPT2

Technical Specifications - Complete Assembly

ISO	PARTNO.	L	¢D	HEX1	HEX2	T
6.3	LSQ-S1-SS-02	71	26	19	19	G1/4 NPT1/4
10	LSQ-S1-SS-03	75	31.5	22	22	G3/8 NPT3/8
12.5	LSQ-S1-SS-04	88	38.5	27	27	G1/2 NPT1/2
20	LSQ-S1-SS-06	110	48	34	35	G3/4 NPT3/4
25	LSQ-S1-SS-08	119.5	56	41	41	G1 NPT1
31.5	LSQ-S1-SS-10	150	69.5	50	50	G1-1/4 NPT1-1/4
40	LSQ-S1-SS-12	167.5	84	60	60	G1-1/2 NPT1-1/2
50	LSQ-S1-SS-16	210.5	99	75	75	G2 NPT2
