Rincian produk
Syarat Pembayaran & Pengiriman
Kuantitas min Order: 1
Harga: 1.5

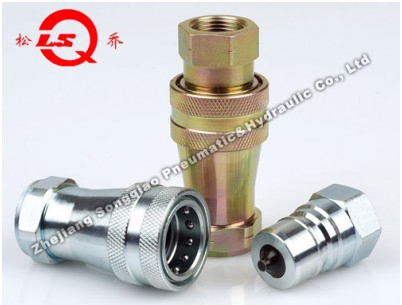

Model No.: |
LSQ-S6 (ISO A Steel) |
Tekanan kerja: |
3000 psi hingga 5000 psi |
Kisaran suhu: |
-20ºC hingga +120ºC |
Bahan segel standar: |
NBR |
Ukuran tubuh: |
1/4, 3/8, 1/2, 3/4, 1 |
Tekanan Dinilai: |
5000, 4000, 4000, 3000, 3000 psi |
Aliran Dinilai: |
3, 6, 12, 28, 50 gpm |
Katup Poppet: |
Ya |
Mekanisme penguncian bola: |
Ya |
Bahan: |
Baja |
Mesin Presisi: |
Ya |
Bagian yang dikeraskan: |
Ya |
Pertukaran: |
ISO 7241-1 Series a |
Kapasitas produksi: |
100000 set/bulan |
Kode HS: |
7307990000 |
Model No.: |
LSQ-S6 (ISO A Steel) |
Tekanan kerja: |
3000 psi hingga 5000 psi |
Kisaran suhu: |
-20ºC hingga +120ºC |
Bahan segel standar: |
NBR |
Ukuran tubuh: |
1/4, 3/8, 1/2, 3/4, 1 |
Tekanan Dinilai: |
5000, 4000, 4000, 3000, 3000 psi |
Aliran Dinilai: |
3, 6, 12, 28, 50 gpm |
Katup Poppet: |
Ya |
Mekanisme penguncian bola: |
Ya |
Bahan: |
Baja |
Mesin Presisi: |
Ya |
Bagian yang dikeraskan: |
Ya |
Pertukaran: |
ISO 7241-1 Series a |
Kapasitas produksi: |
100000 set/bulan |
Kode HS: |
7307990000 |
| Body Size (in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
|---|---|---|---|---|---|
| Rated Pressure (PSI) | 5000 | 4000 | 4000 | 3000 | 3000 |
| Rated Flow (GPM) | 3 | 6 | 12 | 28 | 50 |
| ISO | PARTNO. | LS | ¢D | HEX1 | A | T |
|---|---|---|---|---|---|---|
| 6.3 | LSQ-S6-02SF | 50 | 26 | 19 | 13 | G1/4 NPT1/4 |
| 10 | LSQ-S6-03SF | 56 | 31.5 | 24 | 14 | G3/8 NPT3/8 |
| 12.5 | LSQ-S6-04SF | 66 | 38.6 | 30 | 16 | G1/2 NPT1/2 |
| 20 | LSQ-S6-06SF | 82 | 46.5 | 38 | 20 | G3/4 NPT3/4 |
| 25 | LSQ-S6-08SF | 96.5 | 56 | 45 | 22 | G1" NPT1" |
| ISO | PARTNO. | L | ¢D | HEX1 | HEX2 | T |
|---|---|---|---|---|---|---|
| 6.3 | LSQ-S6-02 | 71.1 | 26 | 19 | 19 | G1/4 NPT1/4 |
| 10 | LSQ-S6-03 | 75 | 31.5 | 24 | 22 | G3/8 NPT3/8 |
| 12.5 | LSQ-S6-04 | 90.5 | 38.6 | 30 | 27 | G1/2 NPT1/2 |
| 20 | LSQ-S6-06 | 109.5 | 46.5 | 38 | 34 | G3/4 NPT3/4 |
| 25 | LSQ-S6-08 | 122 | 56 | 45 | 41 | G1" NPT1" |
