Rincian produk
Syarat Pembayaran & Pengiriman
Kuantitas min Order: 1
Harga: 1
Model No.: |
LSQ-RD (Non Valve Brass) |
Tekanan kerja: |
1000 hingga 2000 psi |
Koneksi mekanis: |
Mengunci bola |
Ukuran tubuh: |
1/8, 1/4, 3/8, 1/2 |
Nilai tekanan: |
Tekanan 1000-2000 PSI |
Aliran Dinilai: |
3, 6, 12, 12 gpm |
Kisaran suhu: |
-20ºC hingga +120ºC |
cairan uji: |
Minyak-200sus |
Konversi aliran: |
1gpm = 3.78l/mnt |
Konversi tekanan: |
1psid = 0,0069mpa |
Opsi material: |
Kuningan, 304 stainless steel |
Kesesuaian: |
Seri Nitto TSP |
Dimensi Bagian: |
Banyak ukuran (lihat tabel) |
Ukuran utas: |
ZG1/8, ZG1/4, ZG3/8, ZG1/2, ZG3/4, ZG1 |
Kapasitas produksi: |
100000 set/bulan |
Model No.: |
LSQ-RD (Non Valve Brass) |
Tekanan kerja: |
1000 hingga 2000 psi |
Koneksi mekanis: |
Mengunci bola |
Ukuran tubuh: |
1/8, 1/4, 3/8, 1/2 |
Nilai tekanan: |
Tekanan 1000-2000 PSI |
Aliran Dinilai: |
3, 6, 12, 12 gpm |
Kisaran suhu: |
-20ºC hingga +120ºC |
cairan uji: |
Minyak-200sus |
Konversi aliran: |
1gpm = 3.78l/mnt |
Konversi tekanan: |
1psid = 0,0069mpa |
Opsi material: |
Kuningan, 304 stainless steel |
Kesesuaian: |
Seri Nitto TSP |
Dimensi Bagian: |
Banyak ukuran (lihat tabel) |
Ukuran utas: |
ZG1/8, ZG1/4, ZG3/8, ZG1/2, ZG3/4, ZG1 |
Kapasitas produksi: |
100000 set/bulan |

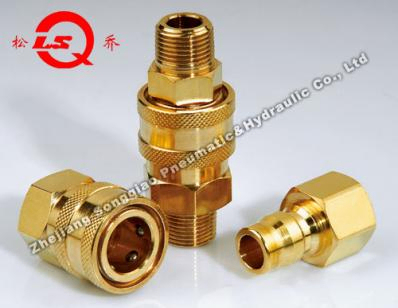

The LSQ-RD Series are non-valved couplings designed for applications requiring maximum flow. Their smooth, open bore offers the lowest pressure drop of any quick coupling design, making them ideal for high-pressure water and steam washers, carpet cleaners, mold coolant lines, and other non-valved applications.
| Body Size (in) | 1/8 | 1/4 | 3/8 | 1/2 |
|---|---|---|---|---|
| Rated Pressure (PSI) Brass Cplr/Npl |
1000 | 1000 | 1000 | 1000 |
| Rated Pressure (PSI) SS Cplr/Npl |
2000 | 2000 | 1500 | 1500 |
| Rated Flow (GPM) | 3 | 6 | 12 | 12 |
| Temperature Range (std seals) | -20ºC to +120ºC | |||
Test Fluid: Oil-200SUS
1GPM = 3.78L/Min
1PSID = 0.0069MPa
| PART NO. | LS | ¢D | HEX1 | A | T |
|---|---|---|---|---|---|
| LSQ-RD-01SF | 27 | 17.5 | 14 | 9 | ZG1/8 |
| LSQ-RD-02SF | 32 | 24 | 19 | 13 | ZG1/4 |
| LSQ-RD-03SF | 35.8 | 28.3 | 23 | 13 | ZG3/8 |
| LSQ-RD-04SF | 42.6 | 35 | 29 | 17 | ZG1/2 |
| LSQ-RD-06SF | 49.5 | 41 | 36 | 18 | ZG3/4 |
| LSQ-RD-08SF | 59.3 | 57.8 | 50 | 22 | ZG1 |
| PART NO. | LS | ¢D | HEX1 | A | T |
|---|---|---|---|---|---|
| LSQ-RD-01SM | 30 | 17.5 | 14 | 9 | ZG1/8 |
| LSQ-RD-02SM | 42 | 24 | 19 | 13 | ZG1/4 |
| LSQ-RD-03SM | 46.3 | 28.3 | 23 | 13 | ZG3/8 |
| LSQ-RD-04SM | 56.1 | 35 | 29 | 17 | ZG1/2 |
| LSQ-RD-06SM | 61 | 41 | 36 | 18 | ZG3/4 |
| LSQ-RD-08SM | 67.3 | 57.8 | 50 | 22 | ZG1 |
| PART NO. | LP | C | HEX2 | A | T |
|---|---|---|---|---|---|
| LSQ-RD-01PF | 26 | 15.5 | 14 | 9 | ZG1/8 |
| LSQ-RD-02PF | 35 | 18 | 17 | 13 | ZG1/4 |
| LSQ-RD-03PF | 38 | 21.2 | 21 | 13 | ZG3/8 |
| LSQ-RD-04PF | 45 | 24.5 | 29 | 17 | ZG1/2 |
| LSQ-RD-06PF | 50 | 28 | 32 | 18 | ZG3/4 |
| LSQ-RD-08PF | 61 | 36 | 41 | 22 | ZG1 |
| PART NO. | LP | C | HEX1 | A | T |
|---|---|---|---|---|---|
| LSQ-RD-01PM | 32 | 15.5 | 12 | 9 | ZG1/8 |
| LSQ-RD-02PM | 38 | 18 | 17 | 13 | ZG1/4 |
| LSQ-RD-03PM | 43 | 21.2 | 19 | 13 | ZG3/8 |
| LSQ-RD-04PM | 52 | 24.5 | 23 | 17 | ZG1/2 |
| LSQ-RD-06PM | 56 | 28 | 29 | 18 | ZG3/4 |
| LSQ-RD-08PM | 73 | 36 | 41 | 22 | ZG1 |
