Rincian produk
Tempat asal: Ningbo, Tiongkok (Daratan)
Nama merek: SONGQIAO
Nomor model: LSQ-FF
Syarat Pembayaran & Pengiriman
Kuantitas min Order: Dapat dinegosiasikan
Harga: dapat dinegosiasikan
Kemasan rincian: paket ekspor standar atau sesuai permintaan pelanggan.
Waktu pengiriman: dalam waktu 30 hari atau sesuai kebutuhan pelanggan.
Menyediakan kemampuan: 50.000 pcs / hari, sesuai kapasitas bengkel perakitan
Standar: |
Seri ISO 16028, permukaan datar |
WP: |
Tekanan kerja hingga 5.000 psi (345 bar) |
bahan: |
Baja karbon |
Ukuran: |
1/4' - 2' |
Benang: |
BSPP, BSPT, NPT, NPTF, SAE |
Koneksi: |
Mengunci bola |
Standar: |
Seri ISO 16028, permukaan datar |
WP: |
Tekanan kerja hingga 5.000 psi (345 bar) |
bahan: |
Baja karbon |
Ukuran: |
1/4' - 2' |
Benang: |
BSPP, BSPT, NPT, NPTF, SAE |
Koneksi: |
Mengunci bola |

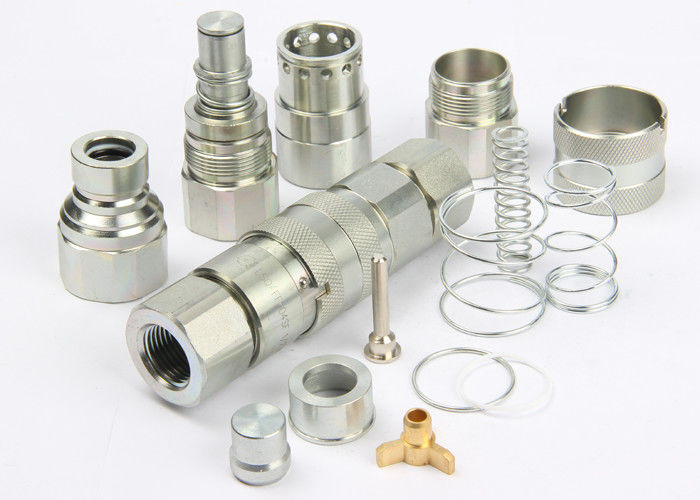

LSQ-FF, ISO16028, Muka Datar, Kopling Cepat Jenis Katup Non-tumpahan dalam Baja Karbon, Chrome Three
Aplikasi:
• Attachment skid loader
• Alat hidrolik
| Ukuran Tubuh (dalam) | 1/4 (02) | 3/8 (03) | 1/2 (04) | 5/8 (06) | 3/4 (08) | 1 (10) | 1-1 / 2 (12) | 2 (16) |
| Tekanan Terukur (PSI) | 5.000 | 4350 |
4350 |
3625 | 3625 | 3000 | 3000 | 3000 |
| Arus Terukur (GPM) | 3 | 6 | 12 | 20 | 28 | 50 | 80 | 100 |
| Tumpahan (ML) | 0,006 | 0,012 | 0,02 | 0,026 | 0,032 | 0,035 | 0,05 | 0.1 |
| (maks. per pemutusan) | ||||||||
| Rentang Suhu | -20 ℃ hingga + 120 ℃ | |||||||
| Sbahan segel tandard NBR | ||||||||
KEUNTUNGAN
1, wajah kawin datar mudah dibersihkan untuk mencegah masuknya kontaminan.
2, Jalur aliran internal yang efisien meminimalkan penurunan tekanan.
3, Desain non-tumpahan menghindari kehilangan cairan selama koneksi dan pemutusan hubungan.
4, Tidak ada intrusi udara selama koneksi.
5, Mengunci selongsong mencegah pemutusan yang tidak disengaja.
6, aliran dua arah.
7, seri LSQ-FF sesuai dengan standar ISO16028.
8, Kompatibel dengan PARKER FEM Series, STUCCHI FIRG Series, AEROQUIP FD89 Series dan HANSEN FF Series.
| ISO | BAGIAN NO | LS | D | HEX1 | SEBUAH | T |
| 6.3 | LSQ-FF-02SF | 58.2 | 28 | 20 | 14 | G1 / 4 NPT1 / 4 |
| 10 | LSQ-FF-03SF | 68.2 | 32 | 24 | 14 | G3 / 8 NPT3 / 8 |
| 10 | LSQ-FF-03SF | 72.2 | 32 | 27 | 18 | G1 / 2 NPT1 / 2 |
| 12.5 | LSQ-FF-04SF | 75 | 38 | 32 | 18 | G1 / 2 NPT1 / 2 |
| 12.5 | LSQ-FF-04SF | 79 | 38 | 36 | 22 | G3 / 4 NPT3 / 4 |
| 16 | LSQ-FF-06SF | 80 | 42 | 36 | 22 | G3 / 4 NPT3 / 4 |
| 19 | LSQ-FF-08SF | 99.8 | 48 | 41 | 22 | G3 / 4 NPT3 / 4 |
| 19 | LSQ-FF-08SF | 99.8 | 48 | 41 | 23.5 | G1 NPT1 |
| 25 | LSQ-FF-10SF | 111.5 | 56 | 55 | 24 | G1-1 / 4 NPT1-1 / 4 |
| - | LSQ-FF-12SF | 150 | 79.5 | 65 | 30 | G1-1 / 2 NPT1-1 / 2 |
| - | LSQ-FF-16SF | 167 | 98.5 | 85 | 31 | G2 NPT2 |
| ISO | BAGIAN NO | LP | d | C | HEX2 | SEBUAH | T |
| 6.3 | LSQ-FF-02PF | 49.2 | 16.1 | 15.2 | 20 | 14 | G1 / 4 NPT1 / 4 |
| 10 | LSQ-FF-03PF | 55.8 | 19.7 | 19.5 | 24 | 14 | G3 / 8 NPT3 / 8 |
| 10 | LSQ-FF-03PF | 59.8 | 19.7 | 19.5 | 27 | 18 | G1 / 2 NPT1 / 2 |
| 12.5 | LSQ-FF-04PF | 72 | 24.5 | 21.6 | 32 | 18 | G1 / 2 NPT1 / 2 |
| 12.5 | LSQ-FF-04PF | 76 | 24.5 | 21.6 | 36 | 22 | G3 / 4 NPT3 / 4 |
| 16 | LSQ-FF-06PF | 75.5 | 27 | 21.6 | 36 | 22 | G3 / 4 NPT3 / 4 |
| 19 | LSQ-FF-08PF | 93.8 | 30 | 29 | 41 | 22 | G3 / 4 NPT3 / 4 |
| 19 | LSQ-FF-08PF | 93.8 | 30 | 29 | 41 | 23.5 | G1 NPT1 |
| 25 | LSQ-FF-10PF | 90 | 36 | 34 | 55 | 24 | G1-1 / 4 NPT1-1 / 4 |
| - | LSQ-FF-12PF | 112 | 57 | 38 | 65 | 30 | G1-1 / 2 NPT1-1 / 2 |
| - | LSQ-FF-16PF | 123.9 | 73 | 40.5 | 75 | 31 | G2 NPT2 |
| ISO | BAGIAN NO | L | D | HEX1 | HEX2 | T |
| 6.3 | LSQ-FF-02 | 96.2 | 28 | 20 | 20 | G1 / 4 NPT1 / 4 |
| 10 | LSQ-FF-03 | 108.4 | 32 | 24 | 24 | G3 / 8 NPT3 / 8 |
| 10 | LSQ-FF-03 | 116.4 | 32 | 27 | 27 | G1 / 2 NPT1 / 2 |
| 12.5 | LSQ-FF-04 | 129.3 | 38 | 32 | 32 | G1 / 2 NPT1 / 2 |
| 12.5 | LSQ-FF-04 | 137.3 | 38 | 36 | 36 | G3 / 4 NPT3 / 4 |
| 16 | LSQ-FF-06 | 138 | 42 | 36 | 36 | G3 / 4 NPT3 / 4 |
| 19 | LSQ-FF-08 | 172.1 | 48 | 41 | 41 | G3 / 4 NPT3 / 4 |
| 19 | LSQ-FF-08 | 172.1 | 48 | 41 | 41 | G1 NPT1 |
| 25 | LSQ-FF-10 | 178 | 56 | 55 | 55 | G1-1 / 4 NPT1-1 / 4 |
| - | LSQ-FF-12 | 233.4 | 79.5 | 65 | 65 | G1-1 / 2 NPT1-1 / 2 |
| - | LSQ-FF-16 | 251.7 | 98.5 | 85 | 75 | G2 NPT2 |
