Rincian produk
Tempat asal: Ningbo, Cina (Daratan)
Nama merek: SONGQIAO
Nomor model: LSQ-AB
Syarat Pembayaran & Pengiriman
Kuantitas min Order: Dapat dinegosiasikan
Harga: dapat dinegosiasikan
Kemasan rincian: paket ekspor standar atau sesuai permintaan pelanggan
Waktu pengiriman: dalam waktu 30 hari atau sesuai kebutuhan pelanggan
Menyediakan kemampuan: 50.000 pcs / hari, sesuai kapasitas bengkel perakitan
Standar: |
Kompatibel dengan seri NITTO HI-CUPLA, seri CEJN 315 |
bahan: |
Kuningan |
Size: |
1/8"-1/2" |
WP: |
Tekanan kerja to145 psi (10 bar) |
Standar: |
Kompatibel dengan seri NITTO HI-CUPLA, seri CEJN 315 |
bahan: |
Kuningan |
Size: |
1/8"-1/2" |
WP: |
Tekanan kerja to145 psi (10 bar) |

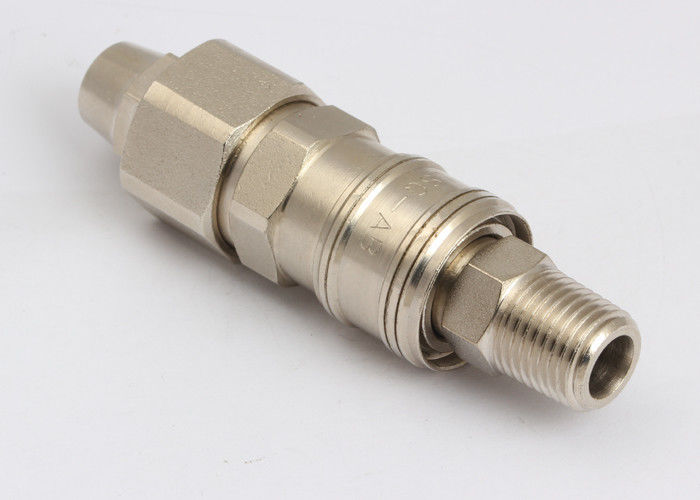

LSQ-AB Nitto Hi-Cupla, Tipe Semi-Otomatis, Kopling Cepat Pneumatik dari Kuningan, berlapis Nikel
Deskripsi:
LSQ-AB kopling cepat tipe satu tangan dan semi otomatis (kuningan)
→ Fitur: Operasi satu tangan.
→ Keuntungan: operasi satu tangan
→ Aplikasi: alat pneumatik
→ Dapat dipertukarkan: Seri Nitto HI-CUPLA, Seri CEJN 315.Seri Rectus 13KA.
→ Tekanan Kerja: 1.0MPa.
→ Suhu Kerja: -20 ℃ hingga +120 ℃.
| PARTNO. | LS | ￠D | HEX1 | A | ￠T | D |
| LSQ-AB-01SH | 72 | 22 | 22 | 20 | 7 | 3 |
| LSQ-AB-02SH | 77 | 22 | 22 | 25 | 9 | 5 |
| LSQ-AB-03SH | 77 | 22 | 22 | 25 | 11.2 | 7 |
| PARTNO. | LS | ￠D | HEX1 | A | T(BSP) | D |
| LSQ-AB-02SF | 60 | 22 | 22 | 13 | BSP1/4" | 10 |
| LSQ-AB-03SF | 60 | 22 | 22 | 13 | BSP3/8" | 10 |
| LSQ-AB-04SF | 62 | 22 | 22 | 14 | BSP1/2" | 10 |
| PARTNO. | LS | ￠D | HEX1 | A | T(PT) | D |
| LSQ-AB-02SM | 60 | 22 | 22 | 13 | PT1/4" | 7 |
| LSQ-AB-03SM | 60 | 22 | 22 | 13 | PT3/8" | 10 |
| LSQ-AB-04SM | 61 | 22 | 22 | 14 | PT1/2" | 14 |
| PARTNO. | LS | ￠D | HEX1 | A | T(BSP) | D |
| LSQ-AB-01SP | 60 | 22 | 22 | 13 | 6*4 | 2.8 |
| LSQ-AB-02SP | 62 | 22 | 22 | 15 | 8*5 | 3.8 |
| LSQ-AB-03SP | 64 | 22 | 22 | 17 | 10*6.5 | 5 |
| LSQ-AB-04SP | 64 | 22 | 22 | 17 | 12*8 | 6.5 |
| PARTNO. | LP | C | CP | A | ￠T | D |
| LSQ-AB-01PH | 47.5 | 20.5 | ￠16 | 20 | 7 | 7.5 |
| LSQ-AB-02PH | 52.5 | 20.5 | ￠16 | 25 | 9 | 7.5 |
| LSQ-AB-03PH | 52.5 | 20.5 | ￠16 | 25 | 11.2 | 7.5 |
| PARTNO. | LP | C | HEX2 | A | T(BSP) | D |
| LSQ-AB-02PF | 36.5 | 20.5 | 17 | 13 | BSP1/4" | 7.5 |
| LSQ-AB-03PF | 36.5 | 20.5 | 19 | 15 | BSP3/8" | 7.5 |
| LSQ-AB-04PF | 41.5 | 20.5 | 24 | 16 | BSP1/2" | 7.5 |
| PARTNO. | LP | C | HEX2 | A | T(PT) | D |
| LSQ-AB-02PM | 36.5 | 20.5 | 14 | 9.5 | PT1/4" | 7.5 |
| LSQ-AB-03PM | 39.5 | 20.5 | 17 | 13 | PT3/8" | 7.5 |
| LSQ-AB-04PM | 42.5 | 20.5 | 22 | 15 | PT1/2" | 7.5 |
| PARTNO. | LP | C | HEX2 | A | T | D |
| LSQ-AB-01PP | 40 | 20.5 | 14 | 14 | 6*4 | 7.5 |
| LSQ-AB-02PP | 41 | 20.5 | 14 | 15 | 8*5 | 7.5 |
| LSQ-AB-03PP | 43 | 20.5 | 17 | 17 | 10*6.5 | 7.5 |
| LSQ-AB-04PP | 45.5 | 20.5 | 19 | 19 | 12*8 | 7.5 |
