Rincian produk
Tempat asal: Ningbo, Cina (Daratan)
Nama merek: SONGQIAO
Nomor model: LSQ-C
Syarat Pembayaran & Pengiriman
Kuantitas min Order: Dapat dinegosiasikan
Harga: dapat dinegosiasikan
Kemasan rincian: paket ekspor standar atau sesuai permintaan pelanggan
Waktu pengiriman: dalam waktu 30 hari atau sesuai kebutuhan pelanggan
Menyediakan kemampuan: 50.000 pcs / hari, sesuai kapasitas bengkel perakitan
Standar: |
Kompatibel dengan seri NITTO HI-CUPLA, seri CEJN 315 |
bahan: |
Baja karbon |
Ukuran: |
1/8"-1/2" |
WP: |
Tekanan kerja to145 psi (10 bar) |
Standar: |
Kompatibel dengan seri NITTO HI-CUPLA, seri CEJN 315 |
bahan: |
Baja karbon |
Ukuran: |
1/8"-1/2" |
WP: |
Tekanan kerja to145 psi (10 bar) |

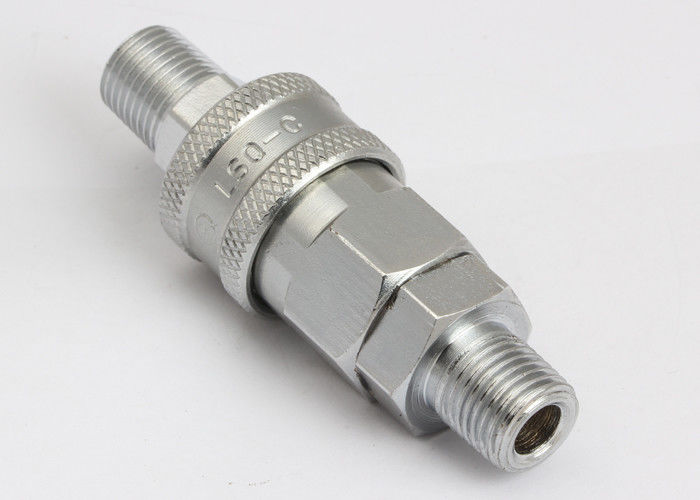

LSQ-C Nitto Hi-Cupla, Tipe Manual, Kopling Cepat Pneumatik dalam Baja Karbon, Chrome Tiga
Deskripsi:
LSQ-C SINGLE SHUT-OFF PNEUMATIC QUICK COUPLING(STEEL)
→ Fitur: banyak digunakan di Pasar Asia.
→ Keuntungan: Struktur sederhana
→ Aplikasi: Alat pneumatik
→ Dapat dipertukarkan: Seri Nitto HI-CUPLA, Seri CEJN 315.Seri Rectus 13KA.
→ Tekanan Kerja: 1.0MPa.
→ Suhu Kerja: -20 ℃ hingga +120 ℃.
→ Bahan SS304 dan kuningan adalah opsional
| PARTNO. | LS | ￠D | HEX1 | A | ￠T | D |
| LSQ-C-01SH | 62 | 25.5 | 19 | 20 | 7 | 4 |
| LSQ-C-02SH | 67.5 | 25.5 | 19 | 25 | 9 | 5 |
| LSQ-C-03SH | 67.5 | 25.5 | 19 | 25 | 11 | 7 |
| PARTNO. | LS | ￠D | HEX1 | A | T(BSP) | D |
| LSQ-C-02SF | 52.5 | 25.5 | 19 | 13 | BSP1/4"19P | 9 |
| LSQ-C-03SF | 52.5 | 25.5 | 19 | 15 | BSP3/8"19P | 9 |
| LSQ-C-04SF | 55.5 | 25.5 | 24 | 16 | BSP1/2"14P | 9 |
| PARTNO. | LS | ￠D | HEX1 | A | T(PT) | D |
| LSQ-C-02SM | 55.5 | 25.5 | 19 | 13 | PT1/4"19P | 7 |
| LSQ-C-03SM | 56 | 25.5 | 19 | 13 | PT3/8"19P | 10 |
| LSQ-C-04SM | 58.8 | 25.5 | 22 | 16 | PT1/2"14P | 14 |
| PARTNO. | LS | ￠D | HEX1 | A | T | D |
| LSQ-C-01SP | 56.5 | 25.5 | 19 | 14 | 6*4 | 2.8 |
| LSQ-C-02SP | 57.5 | 25.5 | 19 | 15 | 8*5 | 4 |
| LSQ-C-03SP | 59.5 | 25.5 | 19 | 17 | 10*6.5 | 5 |
| LSQ-C-04SP | 61.5 | 25.5 | 19 | 19 | 12*8 | 6.5 |
| PARTNO. | LP | C | CP | A | ￠T | D |
| LSQ-C-01PH | 47.5 | 20.5 | ￠116 | 20 | 7 | 7.5 |
| LSQ-C-02PH | 52.5 | 20.5 | ￠16 | 25 | 9 | 7.5 |
| LSQ-C-03PH | 52.5 | 20.5 | ￠16 | 25 | 11 | 7.5 |
| PARTNO. | LP | C | HEX2 | A | T(BSP) | D |
| LSQ-C-02PF | 36.5 | 20.5 | 17 | 15 | BSP1/4"19P | 7.5 |
| LSQ-C-03PF | 36.5 | 20.5 | 19 | 15 | BSP3/8"19P | 7.5 |
| LSQ-C-04PF | 41.5 | 20.5 | 24 | 16 | BSP1/2"14P | 7.5 |
| PARTNO. | LP | C | HEX2 | A | T(PT) | D |
| LSQ-C-02PM | 36.5 | 20.5 | 14 | 9.5 | PT1/4"19P | 7.5 |
| LSQ-C-03PM | 39.5 | 20.5 | 17 | 13 | PT3/8"19P | 7.5 |
| LSQ-C-04PM | 42.5 | 20.5 | 22 | 15 | PT1/2"14P | 7.5 |
| PARTNO. | LP | C | HEX2 | A | T | D |
| LSQ-C-01PP | 40 | 20.5 | 14 | 14 | 6*4 | 7.5 |
| LSQ-C-02PP | 41 | 20.5 | 14 | 15 | 8*5 | 7.5 |
| LSQ-C-03PP | 43 | 20.5 | 17 | 17 | 10*6.5 | 7.5 |
| LSQ-C-04PP | 45.5 | 20.5 | 19 | 19 | 12*8 | 7.5 |
